our products

---

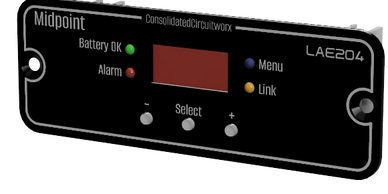

LAE204 battery midpoint monitor is powered directly from your 48Vdc battery string.  No need for external power adapters.

Next generation design for simple and highly effective midpoint battery monitoring.  Incorporates additional features for input voltage, battery breaker and cell temperature monitoring and alarming.

Alarms can be enabled or disabled by using the LAE204 onboard menu and display.

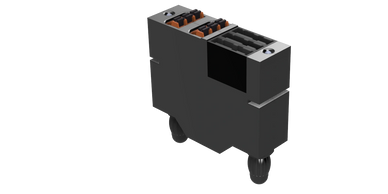

LAE230 - Fuse Block

Connect up to three separate devices using the spring-loaded push terminals.

Uses widely available telecommunications standard GMT indicating fuses.  Maximum fuse rating for each circuit is 15 A 125VAC, 60VDC.

Indicator tab at bottom of fuse block connects to alarming unit for remote notifications.

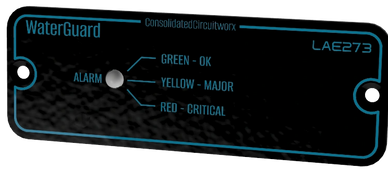

LAE273 Water detector is powered directly from your 48Vdc battery string.  No need for external power adapters.  The LAE273 is part of our efforts to develop integrated 48v products to simplify your install and wiring steps.

Has visual, audible and dry contact alarming indicators.  The water detector  has two sensor inputs for low and high level detection or dual-zone if preferred.  Kit includes one floor sensor.

Mounting is simple using our 1U-23-5 rackmount bracket.

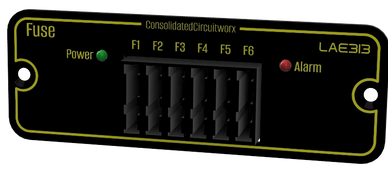

LAE313 Fuse Panel

Power and Alarm indicators to provide immediate feedback.

*12Vdc power distribution for up to six independent connections/devices.  Maximum fuse rating for each circuit is 15 A 125VAC, 60VDC.

Uses widely available telecommunications standard GMT indicating fuses.  Alarming can be sent to an existing site monitoring system via a dry contact (Form “C” relay).

*48Vdc version available upon request.

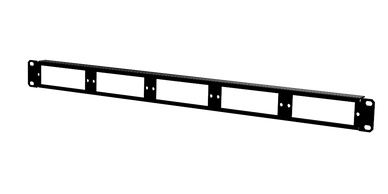

1U-23-5 Rackmount bracket for mounting our sensors in a standard 23 inch wide equipment rack.  Accommodates up to five sensors.

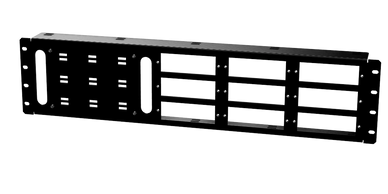

We design and manufacture custom mounting hardware for your specific application.  Contact us today with your requirements to get started on your tailor-made solution.
